APS7000XL & 7000XL Stainless Steel Bench Scale
Doran Scale 7000XL & APS7000XL
The Doran Scale 7000XL & APS7000XL Stainless Steel Bench Scales are Washdown Safe, NTEP certified, and feature a 1000% Overload “Quad Spring” Base. Shop now!
One Scale – Many Uses

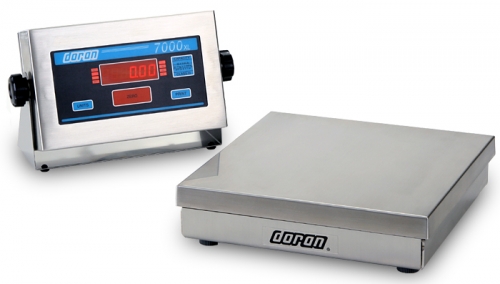

The Doran Excel Series 7000XL stainless steel bench scale is the latest evolution of our time-proven 7000XL Series Scales. For years it’s been a workhorse in the toughest of working environments, now it can be put to work in a wider variety of tasks with the Excel Series Design. From a simple dough scale on a baker’s bench to data collection device connected to a computer network, the 7000XL is adaptable to fit your specific needs.
Easy to Operate
The basic controls are all here – Zero, Units, and Print, you can’t get any simpler than that. The benefit to you is a scale that is easy to operate and train employees to use – reducing operator error.
1000% Overload Base
No…that’s not a typo! Our unique “Quad-Spring” design protects the sensitive load cell from shock and overload damage. Protected to a maximum of 10 times the base load rating sets the new industry standard – a feature only available from Doran. Take a “peek under the hood” to see what’s inside our DXL scale base.
Washdown Safe Construction
Superior washdown protection has been engineered into the Model APS7000XL Stainless Steel Digital Scale. From the heavy gauge stainless steel to the innovative gasket design, this scale meets the NEMA4X and IP69K classifications for washdown protection.
Powerful Excel Features & Options
Take the 7000XL to new levels with the enhanced features made possible with the new Excel Series Design. Choose from a variety of communication options include Wired or Wireless Ethernet. Control a mixing or batching operation by simply adding setpoints and relays.

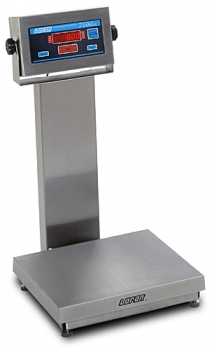

The APS7000XL Series
The APS7000XL Series includes a 20″-tall column, but if additional height is needed, a 30″-tall column is available. Four different base sizes are available: 15″ x 15″, 18″ x 18″, 18″ x 24″, or 24″ x 24″.
- The APS7000XL Series includes a 20″-tall column, but if additional height is needed, a 30″-tall column is available. Four different base sizes are available: 15″ x 15″, 18″ x 18″, 18″ x 24″, or 24″ x 24″
- Upgrade Atlas Column from 20″ to 40″
- Washdown Safe 304 Stainless Steel Construction
- 1000% Overload “Quad Spring” Base
- Heavy Duty “Guardian” Touch Panel
- Powerful Excel Features and Options
- 14″ Atlas Column available in many sizes
- Meter Only Option
- Serial Data Communications
- One-Piece Bracket
- Stainless Steel Load Cell
- 230 VAC Operation
- External DC Power (12 VDC)
- Load Cell Cable Quick Disconnect, Serial Data Cable Quick Disconnect & Remote Switch Cable Quick Disconnect
- Remote Switches
- 4-20mA Analog Output
- Wired Ethernet Network Data Communications & Wireless Ethernet Network Data Communications
- Fiber Optic Interface
- RS-485 Serial Data Output
- Digital Output Board
- USB Data Interface
- Internal Relays & Remote Display External Relays
- Audible Alarm Options (External or Internal)
- 6 Digit, Red LED, 0.56” High
- Bi-directional RS-232
- Power: 100~240VAC, 50/60 Hz
- Resolution Range: 0.0005 – 0.05lbs
- Construction: 304 Stainless Steel
- Measurement Canada Certified
- NTEP Certified
- 2 year warranty
| Model # | Description | Capacity | Platter Size | Display | Unit of Measure | Battery | Dimensions | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| 7002XL/8 | 7000XL Stainless Steel Bench Scale | 2 x 0.0005; 0.9kg x 0.2g | 8 X 8" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" | CALL |
| 7005XL/8 | 7000XL Stainless Steel Bench Scale | 5 x 0.001; 2.3kg x 0.5g | 8 X 8" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" | CALL |
| 7010XL/8 | 7000XL Stainless Steel Bench Scale | 10 x 0.002; 4.5kg x 1g | 8 X 8" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" | CALL |
| 7025XL/8 | 7000XL Stainless Steel Bench Scale | 25 x 0.005; 11.3kg x 2g | 8 X 8" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" | CALL |
| 7002X | 7000XL Stainless Steel Bench Scale | 2 x 0.0005; 0.9kg x 0.2g | 10 X 10" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" | CALL |
| 7005XL | 7000XL Stainless Steel Bench Scale | 5 x 0.001; 2.3kg x 0.5g | 10 X 10" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" | CALL |
| 7010XL | 7000XL Stainless Steel Bench Scale | 10 x 0.002; 4.5kg x 1g | 10 X 10" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" | CALL |
| 7025XL | 7000XL Stainless Steel Bench Scale | 25 x 0.005; 11.3kg x 2g | 10 X 10" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" | CALL |
| 7050XL | 7000XL Stainless Steel Bench Scale | 50 x 0.01; 22.7kg x 5g | 10 X 10" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" | CALL |
| 7050XL/12 | 7000XL Stainless Steel Bench Scale | 50 x 0.01; 22.7kg x 5g | 12 x 12" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" | CALL |
| 7100XL/12 | 7000XL Stainless Steel Bench Scale | 100 x 0.02; 45kg x 10g | 12 x 12" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" | CALL |
| 7050XL/15 | 7000XL Stainless Steel Bench Scale | 50 x 0.01; 22.7kg x 5g | 15 x 15" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" | CALL |
| 7100XL/15 | 7000XL Stainless Steel Bench Scale | 100 x 0.02; 45kg x 10g | 15 x 15" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" | CALL |
| 7200XL/15 | 7000XL Stainless Steel Bench Scale | 200 x 0.05; 91kg x 20g | 15 x 15" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" | CALL |
| Model # | Description | Capacity | Platter Size | Display | Unit of Measure | Battery | Dimensions | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| APS7050XL/15 | APS7000XL Stainless Steel Bench Scale including 20" Tall Atlas Column | 50 x 0.01; 22.7kg x 5g | 15 x 15" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" ; 20" Column | CALL |
| APS7100XL/15 | APS7000XL Stainless Steel Bench Scale including 20" Tall Atlas Column | 100 x 0.02; 45kg x 10g | 15 x 15" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" ; 20" Column | CALL |
| APS7200XL/15 | APS7000XL Stainless Steel Bench Scale including 20" Tall Atlas Column | 200 x 0.05; 91kg x 20g | 15 x 15" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" ; 20" Column | CALL |
| APS7100XL/18S | APS7000XL Stainless Steel Bench Scale including 20" Tall Atlas Column | 100 x 0.02; 45kg x 10g | 18 x 18" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" ; 20" Column | CALL |
| APS7250XL/18S | APS7000XL Stainless Steel Bench Scale including 20" Tall Atlas Column | 250 x 0.05 lb x 113 x 20g | 18 x 18" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3"; 20" Column | CALL |
| APS7500XL/18S | APS7000XL Stainless Steel Bench Scale including 20" Tall Atlas Column | 500 x 0.1 lb x 227 x 50g | 18 x 18" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" ; 20" Column | CALL |
| APS7250XL/1824 | APS7000XL Stainless Steel Bench Scale including 20" Tall Atlas Column | 250 x 0.05 lb x 113 x 20g | 18 x 24" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" ; 20" Column | CALL |
| APS7500XL/1824 | APS7000XL Stainless Steel Bench Scale including 20" Tall Atlas Column | 500 x 0.1 lb x 227 x 50g | 18 x 24" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" ; 20" Column | CALL |
| APS7250XL/2424 | APS7000XL Stainless Steel Bench Scale including 20" Tall Atlas Column | 250 x 0.05 lb x 113 x 20g | 24 x 24" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" ; 20" Column | CALL |
| APS7500XL/2424 | APS7000XL Stainless Steel Bench Scale including 20" Tall Atlas Column | 500 x 0.1 lb x 227 x 50g | 24 x 24" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" ; 20" Column | CALL |
| APS71000XL/2424 | APS7000XL Stainless Steel Bench Scale including 20" Tall Atlas Column | 1000 x 0.2 lb x 454 x 0.1g | 24 x 24" | 6 Digit Red LED | lb; g; kg; oz; lb:oz | 115 VAC | Indicator-6 x 10 x 3" ; 20" Column | CALL |
