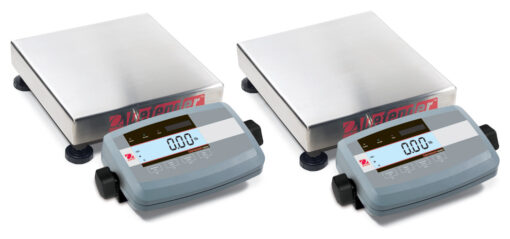

Defender 5000 Low Profile Scales
The OHAUS DefenderTM 5000 Series is a feature-rich line of bench scales, combining an ABS plastic T51P indicator with painted steel bases and mounting brackets. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 5000 offers a multifunctional indicator with multiple weighing units and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 5000 can meet the needs of demanding industrial operations.
- Painted steel bases with ABS indicator
- Baker’s Percentage and Display Hold software included
- 10,000-12,500d default resolution for square bases, 5,000-7,500d default resolution for rectangular bases
- 1:5,000 NTEP Certified / Measurement Canada Approved for square bases, up to 1:3,000 for rectangular bases
- Quick display of results using large LCD with high-contrast white backlight
- Temporary display of 10x readability in weighing mode using quick key press
- Easy to operate with 4-key membrane keypad with raised tactile keys
- Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), metric tonnes and user-definable custom unit
- Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, and Display Hold
- Internal power supply with universal line cord or 6 “C” batteries (80 hour battery life) – optional NiMH internal rechargeable power pack available
- Includes RS232 interface with GMP/GLP data output including date and time
- Base and indicator connected using quick connect plug
- Optional interfaces include DC relay control kit, AC relay control kit, 2nd RS232 and RS485/422
- 1 year warranty
| Model # | Description | Capacity | Platter Size | Display | Unit of Measure | Battery | Dimensions | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| D51P10QR5 | Defender 5000 Square Bench Scales | 25 lb x 0.005 lb 10 kg x 0.002 kg | 12 x 12" | LCD | kg; g; lb; oz; lb:oz (decimal) | AC/DC | 12 x 3.7 x 12 x 20.8" | 36 Lbs |
| D51P250QR5 | Defender 5000 Square Bench Scales | 50 lb x 0.01 lb 25 kg x 0.005 kg | 12 x 12" | LCD | kg; g; lb; oz; lb:oz (decimal) | AC/DC | 12 x 3.7 x 12 x 20.8" | 36 Lbs |
| D51P50QL5 | Defender 5000 Square Bench Scales | 100 lb x 0.02 lb 50 kg x 0.01 kg | 18 x 18" | LCD | kg; g; lb; oz; lb:oz (decimal) | AC/DC | 18 x 4.5 x 18 x 26.8" | 69 Lbs |
| D51P100QL5 | Defender 5000 Square Bench Scales | 250 lb x 0.05 lb 100 kg x 0.02 kg | 18 x 18" | LCD | kg; g; lb; oz; lb:oz (decimal) | AC/DC | 18 x 4.5 x 18 x 26.8" | 69 Lbs |
| D51P250QX5 | Defender 5000 Square Bench Scales | 500 lb x 0.10 lb 250 kg x 0.05 kg | 24 x 24" | LCD | kg; g; lb; oz; lb:oz (decimal) | AC/DC | 24 x 5.4 x 24 x 32.8" | 95 Lbs |
| D51P15HR5 | Defender 5000 Rectangular Bench Scales | 30 lb x 0.01 lb 15 kg x 0.005 kg | 12 x 14" | LCD | kg; g; lb; oz; lb:oz (decimal) | AC/DC | 19.3 x 16.1 x 17.3" | 36 Lbs |
| D51P30HR5 | Defender 5000 Rectangular Bench Scales | 60 lb x 0.02 lb 30 kg x 0.01 kg | 12 x 14" | LCD | kg; g; lb; oz; lb:oz (decimal) | AC/DC | 19.3 x 16.1 x 17.3" | 36 Lbs |
| D51P60HR5 | Defender 5000 Rectangular Bench Scales | 150 lb x 0.05 lb 60 kg x 0.02 kg | 12 x 14" | LCD | kg; g; lb; oz; lb:oz (decimal) | AC/DC | 19.3 x 16.1 x 17.3" | 36 Lbs |
| D51P60HL5 | Defender 5000 Rectangular Bench Scales | 150 lb x 0.05 lb 60 kg x 0.02 kg | 15.7 x 19.7" | LCD | kg; g; lb; oz; lb:oz (decimal) | AC/DC | 15.7 x 4.1 x 19.7 x 28.5" | 54 Lbs |
| D51P100HL5 | Defender 5000 Rectangular Bench Scales | 250 lb x 0.1 lb 100 kg x 0.05 kg | 15.7 x 19.7" | LCD | kg; g; lb; oz; lb:oz (decimal) | AC/DC | 15.7 x 4.1 x 19.7 x 28.5" | 54 Lbs |
| D51P150HX5 | Defender 5000 Rectangular Bench Scales | 300 lb x 0.1 lb 150 kg x 0.05 kg | 16.5 x 21.7" | LCD | kg; g; lb; oz; lb:oz (decimal) | AC/DC | 16.5 x 4.9 x 21.7 x 30.5" | 65 Lbs |
| D51P300HX5 | Defender 5000 Rectangular Bench Scales | 600 lb x 0.2 lb 300 kg x 0.1 kg | 16.5 x 21.7" | LCD | kg; g; lb; oz; lb:oz (decimal) | AC/DC | 16.5 x 4.9 x 21.7 x 30.5" | 65 Lbs |
