Defender 5000 Bench Scale Series
OHAUS Defender 5000 Digital Scales

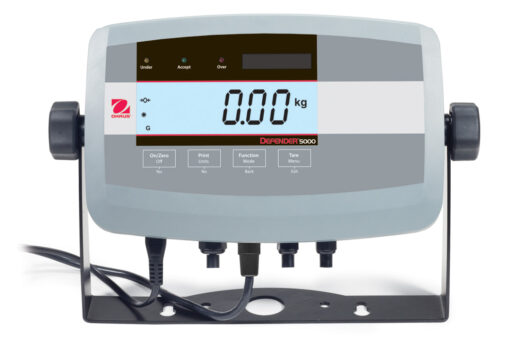

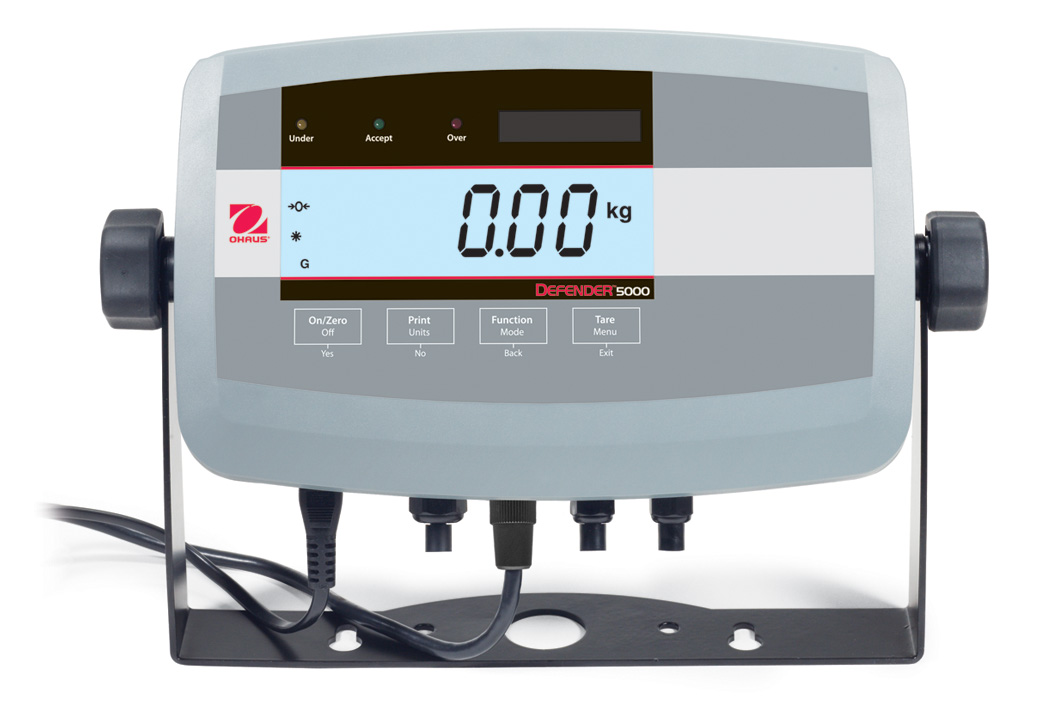

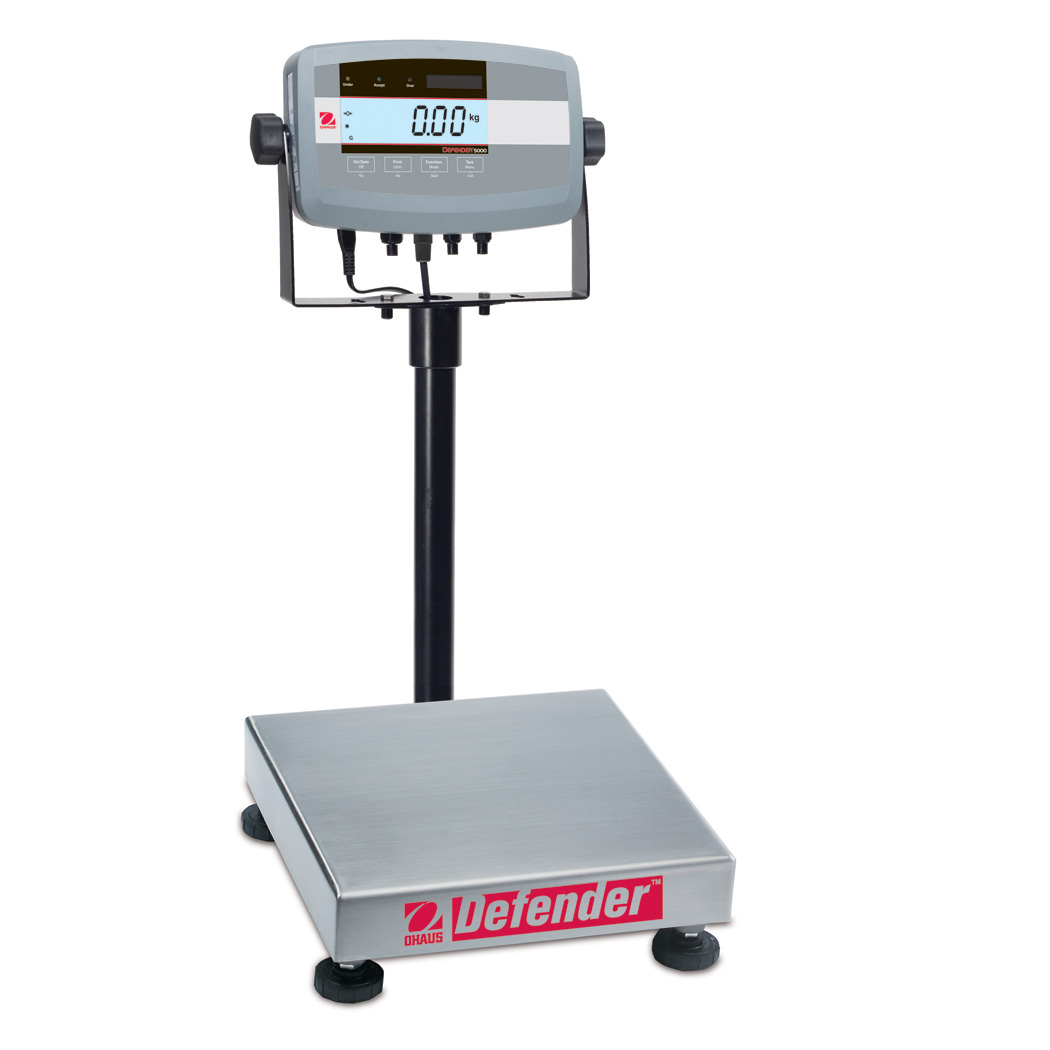

The OHAUS Defender 5000 Digital Scale is a feature-rich line of bench scales, combining an ABS plastic T51P indicator with rectangular painted steel bases and columns. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 5000 offers a multifunctional indicator with multiple weighing units and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 5000 can meet the needs of demanding industrial operations.

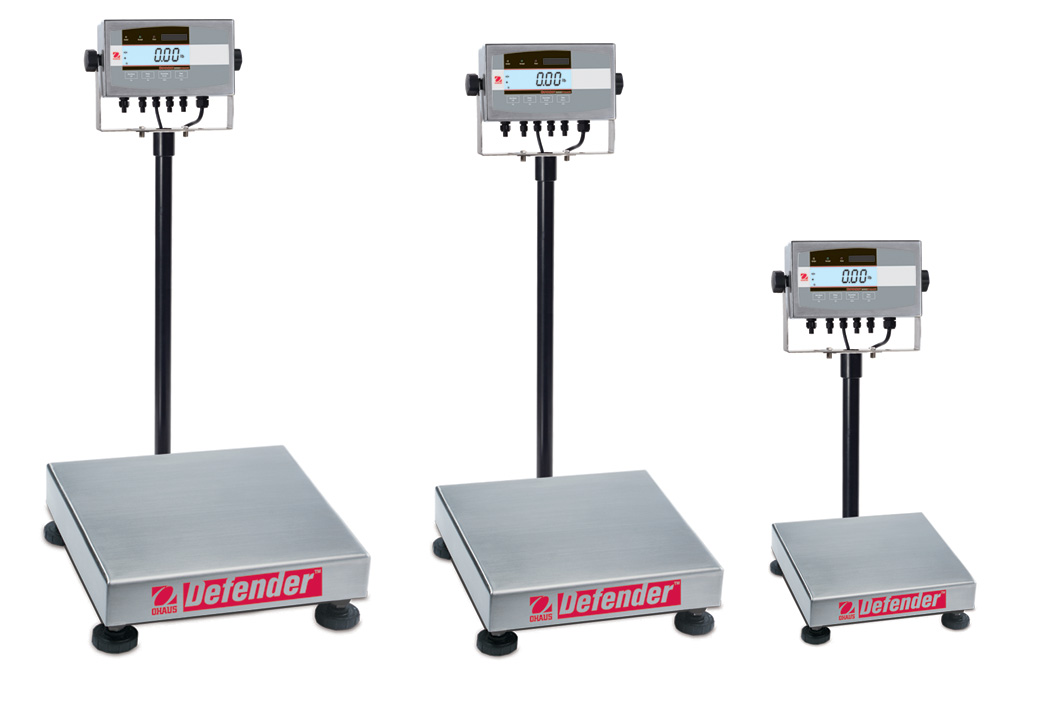

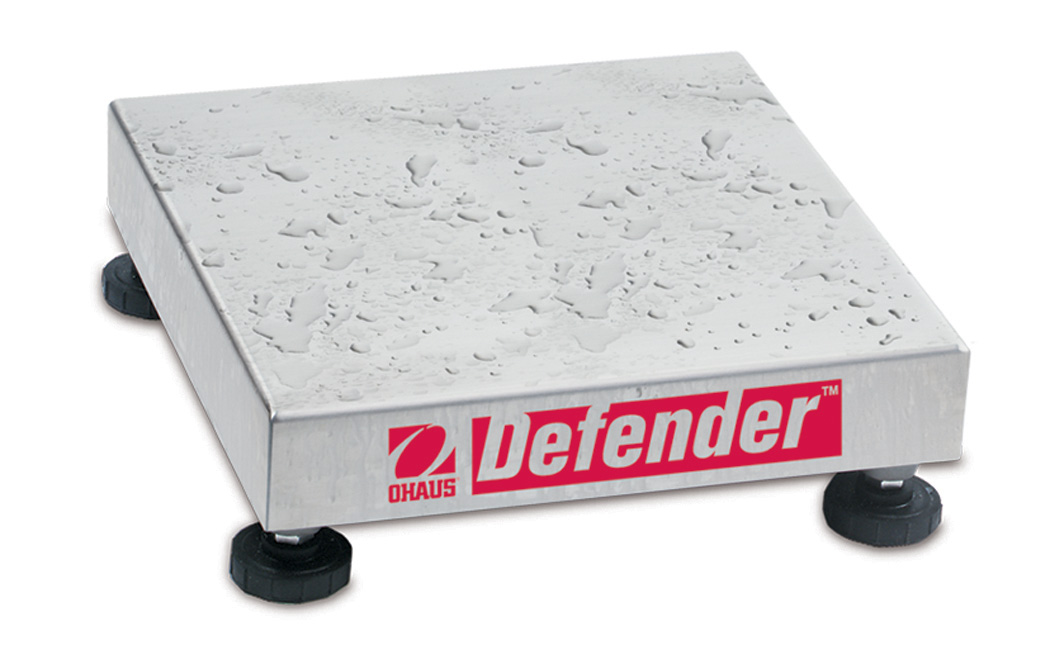

The OHAUS DefenderTM 5000 Washdown Series is a feature-rich line of bench scales, combining a stainless steel D51XW indicator with a square or rectangular, all-stainless steel washdown base and a column. Ideal for production, packaging and general commercial and industrial weighing applications where full washdown protection is required, the Defender 5000 offers a multifunctional indicator with multiple weighing units and software modes to meet the requirements of industrial and lab applications. With rugged steel construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 5000 can meet the needs of demanding industrial operations.
- Available in Square or Rectangular Platforms and Washdown
- Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit.
- Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, and Display Hold.
- Internal power supply with universal line cord or 6 “C” batteries (80 hour battery life) – optional NiMH internal rechargeable power pack available
- Includes RS232 interface with GMP/GLP data output including date and time
- Base and indicator connected using quick connect plug
- Measurement Canada Certified
- NTEP Certified
- 1 year warranty
| Model # | Description | Capacity | Platter Size | Display | Unit of Measure | Battery | Dimensions | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| D51P10QR1 | Defender 5000X Square Bench Scale LFT | 25 x 0.005 lb; 10 x 0.002 kg; 400 x 0.1 oz | 12 x 12 x 3.8" | Large LCD | kg; g; lb; oz; lb:oz | AC/DC | 13.8" Column | 33 lbs |
| D51P10QR1 | Defender 5000X Square Bench Scale LFT | 50 x 0.01 lb; 25 x 0.005 kg; 800 x 0.2 oz | 12 x 12 x 3.8" | Large LCD | kg; g; lb; oz; lb:oz | AC/DC | 13.8" Column | 33 lbs |
| D51P10QR1 | Defender 5000X Square Bench Scale LFT | 100 x 0.02 lb; 50 x 0.01 kg; 1600 x 0.5 oz | 18 x 18 x 4.5" | Large LCD | kg; g; lb; oz; lb:oz | AC/DC | 26.8" Column | 51 lbs |
| D51P10QR1 | Defender 5000X Square Bench Scale LFT | 250 x 0.05 lb; 100 x 0.02kg; 4000 x 1 oz | 18 x 18 x 4.5" | Large LCD | kg; g; lb; oz; lb:oz | AC/DC | 26.8" Column | 51 lbs |
| D51P10QR1 | Defender 5000X Square Bench Scale LFT | 500 x 0.10 lb; 250 x 0.05kg; 8000 x 2 oz | 24 x 24 x 5.4" | Large LCD | kg; g; lb; oz; lb:oz | AC/DC | 26.8" Column | 82 lbs |
| D51P15HR1 | Defender 5000X Rectangular Bench Scale LFT | 30 lb x 0.01 lb 15 kg x 0.005 kg | 12 x 14 x 3.7" | Large LCD | kg; g; lb; oz; lb:oz | AC/DC | 13.8" Column | 31 Lbs |
| D51P30HR1 | Defender 5000X Rectangular Bench Scale LFT | 60 lb x 0.02 lb 30 kg x 0.01 kg | 12 x 14 x 3.7" | Large LCD | kg; g; lb; oz; lb:oz | AC/DC | 13.8" Column | 31 Lbs |
| D51P60HR1 | Defender 5000X Rectangular Bench Scale LFT | 150 lb x 0.05 lb 60 kg x 0.02 kg | 12 x 14 x 3.7" | Large LCD | kg; g; lb; oz; lb:oz | AC/DC | 13.8" Column | 31 Lbs |
| D51P60HL2 | Defender 5000X Rectangular Bench Scale LFT | 150 lb x 0.05 lb 60 kg x 0.02 kg | 15.7 x 19.7 x 4.1" | Large LCD | kg; g; lb; oz; lb:oz | AC/DC | 26.8" Column | 57 Lbs |
| D51P100HL2 | Defender 5000X Rectangular Bench Scale LFT | 250 lb x 0.1 lb 100 kg x 0.05 kg | 15.7 x 19.7 x 4.1" | Large LCD | kg; g; lb; oz; lb:oz | AC/DC | 26.8" Column | 57 Lbs |
| D51P150HX2 | Defender 5000X Rectangular Bench Scale LFT | 300 lb x 0.1 lb 150 kg x 0.05 kg | 16.5 x 21.7 x 4.9" | Large LCD | kg; g; lb; oz; lb:oz | AC/DC | 26.8" Column | 68 Lbs |
| D51P300HX2 | Defender 5000X Rectangular Bench Scale LFT | 600 lb x 0.2 lb 300 kg x 0.1 kg | 16.5 x 21.7 x 4.9" | Large LCD | kg; g; lb; oz; lb:oz | AC/DC | 26.8" Column | 68 Lbs |
| Model # | Description | Capacity | Platter Size | Display | Unit of Measure | Battery | Dimensions | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| D51XW15HR1 | Defender 5000X Xtreme Bench Scales | 30 lb x 0.01 lb 15 kg x 0.005 kg | 12 x 14 x 3.7" | Large LCD | kg; g; lb; oz; lb:oz (decimal); metric tonnes and user-definable custom unit | AC/DC | 13.8" Column | 34 Lbs |
| D51XW30HR1 | Defender 5000X Xtreme Bench Scales | 60 lb x 0.02 lb 30 kg x 0.01 kg | 12 x 14 x 3.7" | Large LCD | kg; g; lb; oz; lb:oz (decimal); metric tonnes and user-definable custom unit | AC/DC | 13.8" Column | 34 Lbs |
| D51XW60HR1 | Defender 5000X Xtreme Bench Scales | 150 lb x 0.05 lb 60 kg x 0.02 kg | 12 x 14 x 3.7" | Large LCD | kg; g; lb; oz; lb:oz (decimal); metric tonnes and user-definable custom unit | AC/DC | 13.8" Column | 34 Lbs |
| D51XW60HL2 | Defender 5000X Xtreme Bench Scales | 150 lb x 0.05 lb 60 kg x 0.02 kg | 15.7 x 19.7 x 4.1" | Large LCD | kg; g; lb; oz; lb:oz (decimal); metric tonnes and user-definable custom unit | AC/DC | 26.8" Column | 60 Lbs |
| D51XW100HL2 | Defender 5000X Xtreme Bench Scales | 250 lb x 0.1 lb 100 kg x 0.05 kg | 15.7 x 19.7 x 4.1" | Large LCD | kg; g; lb; oz; lb:oz (decimal); metric tonnes and user-definable custom unit | AC/DC | 26.8" Column | 60 Lbs |
| D51XW150HX2 | Defender 5000X Xtreme Bench Scales | 300 lb x 0.1 lb 150 kg x 0.05 kg | 16.5 x 21.7 x 4.9" | Large LCD | kg; g; lb; oz; lb:oz (decimal); metric tonnes and user-definable custom unit | AC/DC | 26.8" Column | 71 Lbs |
| D51XW300HX2 | Defender 5000X Xtreme Bench Scales | 600 lb x 0.2 lb 300 kg x 0.1 kg | 16.5 x 21.7 x 4.9" | Large LCD | kg; g; lb; oz; lb:oz (decimal); metric tonnes and user-definable custom unit | AC/DC | 26.8" Column | 71 Lbs |
| Model # | Description | Capacity | Platter Size | Display | Unit of Measure | Battery | Dimensions | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| D51XW10WR3 | Defender 5000XW Xtreme Washdown Square Bench Scale | 25 lb x 0.005 lb 10 kg x 0.002 kg | 12 x 12 x 3.8" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal universal switching power supply with hardwired line cord – optional NiMH internal rechargeable power pack available | 12 x 3.7 x 23.2 x 12 x 16.7" | 41 Lbs |
| D51XW25WR3 | Defender 5000XW Xtreme Washdown Square Bench Scale | 50 lb x 0.01 lb 25 kg x 0.005 kg | 12 x 12 x 3.8" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal universal switching power supply with hardwired line cord – optional NiMH internal rechargeable power pack available | 12 x 3.7 x 23.2 x 12 x 16.7" | 41 Lbs |
| D51XW50WL4 | Defender 5000XW Xtreme Washdown Square Bench Scale | 100 lb x 0.02 lb 50 kg x 0.01 kg | 18 x 18 x 4.5" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal universal switching power supply with hardwired line cord – optional NiMH internal rechargeable power pack available | 18 x 4.5 x 37 x 18 x 22.7" | 75 Lbs |
| D51XW100WL4 | Defender 5000XW Xtreme Washdown Square Bench Scale | 250 lb x 0.05 lb 100 kg x 0.02 kg | 18 x 18 x 4.5" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal universal switching power supply with hardwired line cord – optional NiMH internal rechargeable power pack available | 18 x 4.5 x 37 x 18 x 22.7" | 75 Lbs |
| D51XW250WX4 | Defender 5000XW Xtreme Washdown Square Bench Scale | 500 lb x 0.10 lb 250 kg x 0.05 kg | 24 x 24 x 5.4" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal universal switching power supply with hardwired line cord – optional NiMH internal rechargeable power pack available | 24 x 5.4 x 37 x 24 x 28.7" | 101 Lbs |
| Model # | Description | Capacity | Platter Size | Display | Unit of Measure | Battery | Dimensions | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| D51P10QR5 | Defender 5000 Low Profile Bench Scale | 25 lb x 0.005 lb 10 kg x 0.002 kg | 12 x 12" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal Uniersal Power Supply or 6 C Batteries | 12 x 3.7 x 12 x 20.8 in | 36 lbs |
| D51P10HR5 | Defender 5000 Low Profile Bench Scale | 25 lb x 0.005 lb 10 kg x 0.002 kg | 14 x 12" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal Uniersal Power Supply or 6 C Batteries | 12 x 3.7 x 12 x 20.8 in | 36 lbs |
| D51P25QR5 | Defender 5000 Low Profile Bench Scale | 50 lb x 0.01 lb 25 kg x 0.005 kg | 12 x 12" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal Uniersal Power Supply or 6 C Batteries | 12 x 3.7 x 12 x 20.8 in | 36 lbs |
| D51P30HR5 | Defender 5000 Low Profile Bench Scale | 60 lb x 0.02 lb 30 kg x 0.01 kg | 14 x 12" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal Uniersal Power Supply or 6 C Batteries | 12 x 3.7 x 12 x 20.8 in | 36 lbs |
| D51P50QL5 | Defender 5000 Low Profile Bench Scale | 100 lb x 0.02 lb 50 kg x 0.01 kg | 18 x 18" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal Uniersal Power Supply or 6 C Batteries | 18 x 4.5 x 18 x 26.8 in | 69 lbs |
| D51P60HR5 | Defender 5000 Low Profile Bench Scale | 150 lb x 0.05 lb 60 kg x 0.02 kg | 14 x 12" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal Uniersal Power Supply or 6 C Batteries | 12 x 3.7 x 12 x 20.8 in | 36 lbs |
| D51P60HL5 | Defender 5000 Low Profile Bench Scale | 150 lb x 0.05 lb 60 kg x 0.02 kg | 19.7 x 15.7" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal Uniersal Power Supply or 6 C Batteries | 15.7 x 4.1 x 19.7 x 28.5 in | 54 lbs |
| D51P100QL5 | Defender 5000 Low Profile Bench Scale | 250 lb x 0.05 lb 100 kg x 0.02 kg | 18 x 18" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal Uniersal Power Supply or 6 C Batteries | 18 x 4.5 x 18 x 26.8 in | 69 lbs |
| D51P100HL5 | Defender 5000 Low Profile Bench Scale | 250 lb x 0.05 lb 100 kg x 0.02 kg | 19.7 x 15.7" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal Uniersal Power Supply or 6 C Batteries | 15.7 x 4.1 x 19.7 x 28.5 in | 54 lbs |
| D51P150HX5 | Defender 5000 Low Profile Bench Scale | 300 lb x 0.1 lb 150 kg x 0.05 kg | 21.7 x 16.5" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal Uniersal Power Supply or 6 C Batteries | 16.5 x 4.9 x 21.7 x 30.5 in | 65 lbs |
| D51P250QX5 | Defender 5000 Low Profile Bench Scale | 500 lb x 0.10 lb 250 kg x 0.05 kg | 24 x 24" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal Uniersal Power Supply or 6 C Batteries | 24 x 5.4 x 24 x 32.8 in | 95 lbs |
| D51P300HX5 | Defender 5000 Low Profile Bench Scale | 600 lb x 0.2 lb 300 kg x 0.1 kg | 21.7 x 16.5" | Large LCD | lb; oz; lb:oz; kg; g; metric tonnes; custom unit | Internal Uniersal Power Supply or 6 C Batteries | 16.5 x 4.9 x 21.7 x 30.5 in | 65 lbs |
