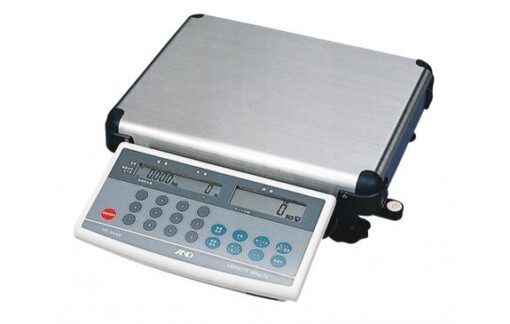

HC/HD Series Counting Scales
HC/HD Series counting scales offer high performance, affordability and great features.
The HC Series is designed for the cost concious user. It is compact and portable. Its low profile speeds operation and saves space.
The HD Series has a detachable display head and large weighing pan for use with over sized containers. It allows flexible reading and convenient operations
- Quick and Easy Operation
- Quickly determine if a weight count is below, within or above target with the built-in comparator function
- Optional RS-232C interface allows for easy connection to a printer or computer
- Large, clear liquid crystal display (LCD) shows all important information at a glance even in dimly lit areas
- Detachable display and large, stainless steel platform are ideal for weighing oversized containers
- Intuitive operation with either standard keys (HD-A) or 10-digit keypad (HD-B)
Trusted Accuracy
- High internal resolution up to 1/120,000 counts for accurate parts counting
- Increased counting accuracy with Automatic Count Accuracy Improvement (ACAI), which automatically corrects errors caused by variation in unit weights
- Key Lock Function limits operators to the minimum required keys, preventing accidental changes and errors
Construction
- Stainless Steel (430) Platform
- ABS Molded Plastic Housing
Weighing Units
- lb, kg and pcs
| Model # | Description | Capacity | Dimensions | Platter Size | Display | Max. Count Display | Battery | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| HC-3K | HC Series Counting Scales | 6 x 0.001 lb / 3 x 0.0005 kg | 13"x12.6"x4.65" / 320cm x 330cm x 118cm | 11.6” x 8.5” / 216cm x 294cm | LCD | 120.000 | AC or SLA Battery | 6.6 Lbs ; 3kg |
| HC-6K | HC Series Counting Scales | 12 x 0.002 lb / 6 x 0.001 kg | 13"x12.6"x4.65" / 320cm x 330cm x 118cm | 11.6” x 8.5” / 216cm x 294cm | LCD | 120.000 | AC or SLA Battery | 6.6 Lbs ; 3kg |
| HC-12K | HC Series Counting Scales | 30 x 0.005 lb / 15 x 0.002 kg | 13"x12.6"x4.65" / 320cm x 330cm x 118cm | 11.6” x 8.5” / 216cm x 294cm | LCD | 120.000 | AC or SLA Battery | 6.6 Lbs ; 3kg |
| Model # | Description | Capacity | Dimensions | Platter Size | Display | Max. Count Display | Battery | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| HD-12K | HD Series Counting Scales | 6 x 0.001 lb / 3 x 0.0005 kg | 13"x12.4"x5" / 330cm x 315cm x 125cm | 11.8” x 8.3” / 200cm x 300cm | LCD | 600.000 | AC or SLA Battery | 10.6 Lbs ; 4.8kg |
| HD-30K | HD Series Counting Scales | 15 x 0.002 lb / 6 x 0.001 kg | 13"x12.4"x5" / 330cm x 315cm x 125cm | 11.8” x 8.3” / 200cm x 300cm | LCD | 600.000 | AC or SLA Battery | 10.6 Lbs ; 4.8kg |
| HD-60K | HD Series Counting Scales | 30 x 0.005 lb / 15 x 0.002 kg | 13"x12.4"x5" / 330cm x 315cm x 125cm | 11.8” x 8.3” / 200cm x 300cm | LCD | 750.000 | AC or SLA Battery | 10.6 Lbs ; 4.8kg |
