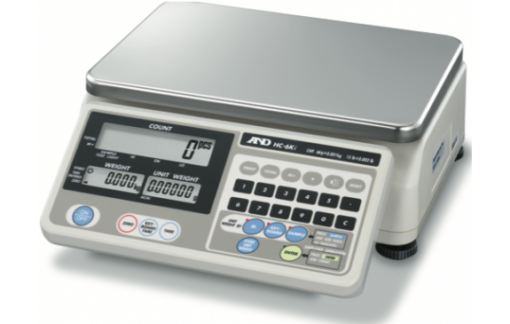

HC-i Series Counting Scales
HC-i Series counting scales offer simple and easy operation.
A&D’s exclusive Automatic Count Accuracy Improvement automatically corrects errors caused by variation in unit weights. The Audible Weighing Assist function alerts you when approaching the target quantity. Unique accumulation function allows for storing total piece count in memory and works in automatic or manual mode.
- Simple Operation Mode
By setting only the keys necessary for your operation, you can avoid making any unwanted operational mistakes. This mode is available for zero setting, tare weight cancel setting, and sample counting setting. - High Internal Resolution & Wide Counting Range
High internal resolution of 1/600,000 (HC-3Ki / 6Ki / 30Ki) or 1/750,000 (HC-15Ki) is enhanced for greater counting accuracy. - Easy Data Retrieval
It is easy for the user to instantly retrieve article data such as the ID number, unit weight, tare weight and comparator upper/lower limits without any difficulties. It helps to improve the effectiveness and reliability of the operation. Especially effective for multi product lines. - Large Stainless Steel Weighing Pan
Large articles can easily be placed on the weighing pan. The weighing pan is removable and easy to clean. - Interface Function
Optional Interface (RS-232C (HC-03i) and RS-232C + Relay Output (HC-04i)) allows the user to perform diverse applications with Barcode Printer. - Barcode Label Printer AD-8125
Prints out a label detailing ID number, unit weight, weight and quantity. You can design your own labels with the UFC function. - AWA (Audible Weighing Assist) Beeping Function
The beeping function tells you that you have almost reached your target quantity. The unit begins to make a beeping sound at shorter intervals, making your counting job faster and easier. - ACAI (Automatic Counting Accuracy Improvement)
ACAI automatically corrects errors caused by variation in unit weights. This function provides greater counting accuracy. - Detachable Display Unit
It is possible to put the display unit on a table or wall for diverse counting applications. (Standard cable: 60cm, Optional extension cable HC-08i: 2m) - Comparator Function
Can compare either the count or weight of pieces when the comparator function is activated, “HI“, “OK” or “LO” is displayed. - Accumulation Function
Total piece calculation stored in memory. Works in automatic mode or manual mode. - ID Memory Function
Can memorize up to 99 unit weights with tare weight and comparator limits by ID numbers (ID 01 to ID 99). - UFC (Universal Flex Coms)
Can design your own printing format and easily print out the measurement data. - Auto Power–Off function
Battery save function for SLA (Sealed Lead Acid). Switches OFF automatically if zero is displayed continuously for 5 minutes. - Calibration Function
Simple and easy to calibrate with external standard mass by full digital calibration for accurate weighing. - Large LCD Display showing Detailed Information
Displays piece counting, weight, unit weight, ID number, comparison result by “HI”, “OK” or “LO” and AC or battery power supply
Model # | Description | Capacity | Dimensions | Platter Size | Display | Max. Count Display | Battery | Shipping Weight |
---|---|---|---|---|---|---|---|---|
HC-3Ki | HCi Series Counting Scales | 6 x 0.001 lb / 3 x 0.0005 kg | 13"x12.4"x5" / 330cm x 315cm x 125cm | 11.8” x 8.3” / 200cm x 300cm | LCD | 600.000 | AC or SLA Battery | 10.6 Lbs ; 4.8kg |
HC-6Ki | HCi Series Counting Scales | 15 x 0.002 lb / 6 x 0.001 kg | 13"x12.4"x5" / 330cm x 315cm x 125cm | 11.8” x 8.3” / 200cm x 300cm | LCD | 600.000 | AC or SLA Battery | 10.6 Lbs ; 4.8kg |
HC-15Ki | HCi Series Counting Scales | 30 x 0.005 lb / 15 x 0.002 kg | 13"x12.4"x5" / 330cm x 315cm x 125cm | 11.8” x 8.3” / 200cm x 300cm | LCD | 750.000 | AC or SLA Battery | 10.6 Lbs ; 4.8kg |
HC-3Ki | HCi Series Counting Scales | 60 x 0.01 lb / 30 x 0.005 kg | 13"x12.4"x5" / 330cm x 315cm x 125cm | 11.8” x 8.3” / 200cm x 300cm | LCD | 600.000 | AC or SLA Battery | 10.6 Lbs ; 4.8kg |
