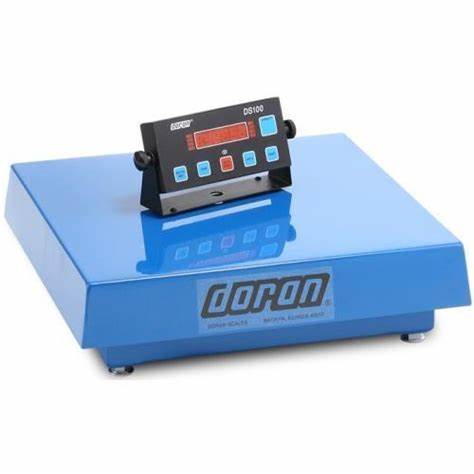

MVP Series MS Bench Scale
MVP Series MS Bench Scale
  1. MVP Series MS Bench Scale
  2. MVP Series MS Bench Scale

MVP Series MS Bench Scale

MVP Series MS Bench Scale

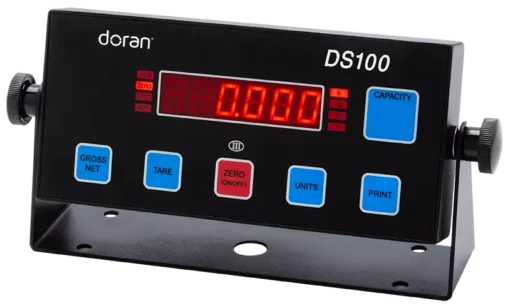

With its rugged design, sturdy powder coated steel frame and bright LED display, the MVP delivers reliable performance and is easy to operate. The standard DS100 Digital Weight Indicator provides basic weighing and durability with excellent readability in a wide variety of lighting conditions and angles – up to 25 feet away. Install into a conveyor line to collect data or check total weights with our 2200 indicator. Other Doran stainless steel indicators are also available to meet your plant’s specific needs and maximize performance. For optimal flexibility and mobility, look to our MVP Series Portable Floor Scale

Categories: , , , , , , ,

INNOVATIVE DESIGN & PERFORMANCE FEATURES
• The sturdy, welded tube mild steel frame of the base is designed to withstand the use and abuse of extreme industrial applications.
• High performance powder coated heavy duty scale provides excellent wear and abrasion protection.
• The bright LED display provides excellent readability in a wide range of lighting conditions and angles.
• Indicator has Controls that Zero, Gross/Net, Tare, Units, Print
• Optional stainless steel platter is available with standard steel base.
• Optional 36″ Tall Mild Steel Column is available
• Optional stainless steel base is available.
• Optional roller and ball top conveyors are available.
• Optional stainless steel indicators are available.

  • NTEP Certified
  • 2 year warranty
  • Sizes: Two base sizes 18”x 18”and 24”x 24”
  • Capacity: Up to 1000 lb
  • Power Input: 115 VAC 60Hz; Transformer, UL/ULc (230 VAC Optional)
  • Resolution Range: 200 to 12,500d
  • Controls: Zero, Gross/Net, Tare, Units, Print
  • Serial Interface: Bi-directional RS-232 port
  • Temperature Range: 14° to 140° F (-10° to 40° C)
  • Analog Sensitivity: 1.0 uV/e min.
  • System Linearity: 0.01% full scale
  • Analog Signal Range: 0.35mV/V to 3.0 mV/V
  • Excitation Voltage: 5 VDC
  • Warranty: Base: Two years; DS100 Indicator: One Year
