Ranger 4000 Compact Bench Scale

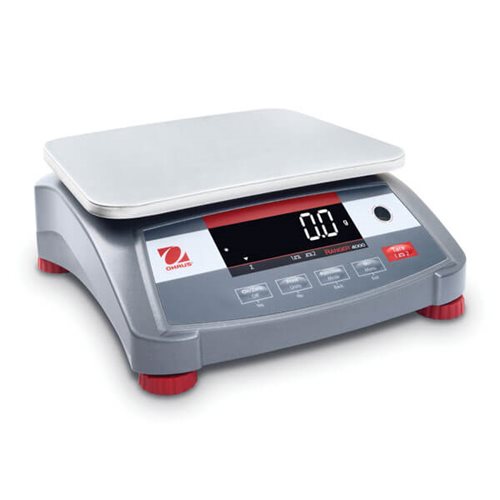

OHAUS Ranger 4000
Durable Compact Scales for the Toughest Industrial Weighing Environments
The multipurpose Ranger 4000 is the right tool for industrial weighing applications in which value is important but quality, durability, and functionality cannot be compromised.
Portable with die-cast metal housing and a rechargeable battery, this scale is equipped with seven application modes that can provide results for many industrial weighing and measurement needs.

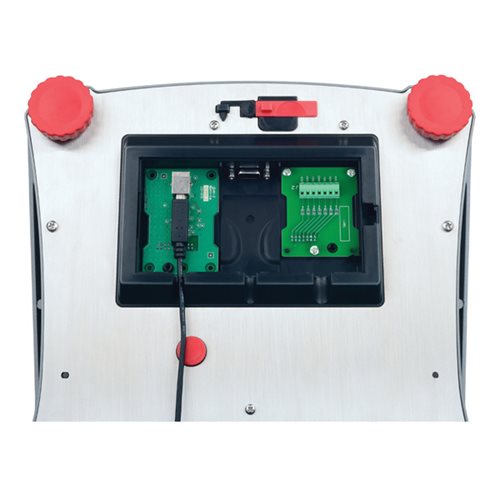

- Standard Connectivity with Flexible Options. Standard RS232 with optional Ethernet, second RS232 and USB offers
additional data transfer capabilities and allows connection to multiple peripherals. - Connect a large, high capacity platform through the 2nd platform option, utilizing the precision and advanced features of Ranger 4000

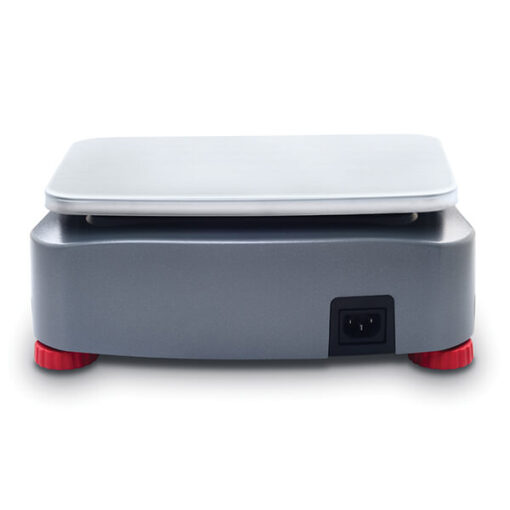

for high capacity weighing. - Internal Power Supply and Rechargeable Battery. Say goodbye to being restricted to working only near power outlets.
Ranger 4000 is equipped with a rechargeable lead acid battery that can provide power for more than 100 hours. It can also be powered
through the easy connect power cord that takes up minimal space and automatically adapts to different power line voltages and frequencies,
eliminating disruptions in workflow due to power outages and shortages. - Metrology – The Ranger 4000 meets the Class III requirements of OIML R76, NIST Handbook 44 and Canada Weights and Measures Regulations.
- NTEP
- Measurement Canada
- 1 year warranty
| Model # | Description | Capacity | Platter Size | Display | Unit of Measure | Battery | Dimensions | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| R41ME3 | Ranger 4000 | 3 kg × 0.001 kg 3000 g × 1 g | 11.8 x 8.9"/ 300 x 225 mm | LCD | kg; g; lb; oz; lb:oz | VAC; Rechargeable Battery | 12.4 x 12.9 x 4.8" / 311 x 327 x 117 mm | 13 Lbs |
| R41ME6 | Ranger 4000 | 6 kg × 0.002 kg 6000 g × 2 g | 11.8 x 8.9"/ 300 x 225 mm | LCD | kg; g; lb; oz; lb:oz | VAC; Rechargeable Battery | 12.4 x 12.9 x 4.8" / 311 x 327 x 117 mm | 13 Lbs |
| R41ME15 | Ranger 4000 | 15 kg × 0.005 kg 15000 g × 5 g | 11.8 x 8.9"/ 300 x 225 mm | LCD | kg; g; lb; oz; lb:oz | VAC; Rechargeable Battery | 12.4 x 12.9 x 4.8" / 311 x 327 x 117 mm | 13 Lbs |
| R41ME30 | Ranger 4000 | 30 kg × 0.01 kg 30000 g × 10 g | 11.8 x 8.9"/ 300 x 225 mm | LCD | kg; g; lb; oz; lb:oz | VAC; Rechargeable Battery | 12.4 x 12.9 x 4.8" / 311 x 327 x 117 mm | 13 Lbs |
Metal Housing Ensures Protection – With die-cast sealed metal housing and slip-resistant rubber feet, Ranger 4000 is built to maximize product life and withstand heavy duty use to ensure accurate operation in industrial environments.
White LED Display Illuminates Results – Ranger 4000’s bright white 1.5″ LED display is 57% larger than displays on other scales in its class. Coupled with checkweighing LEDs and audible indicators, Ranger 4000 is built to stand up to the challenges often faced in industrial weighing.
Intuitive Software Supports Simple Navigation – Powered by SmarText™ software, Ranger 4000’s simple navigation works in tandem with the scale’s dedicated keys to create a user experience that requires minimal effort.
Rapid Stabilization – Ranger 4000 produces accurate results within one second. The rapid stabilization virtually eliminates your wait time and allows you to move at a pace determined by you and not your weighing equipment. Work efficiently and with confidence to ensure accurate results. Maximize your throughput without sacrificing accuracy with the Ranger 4000.
