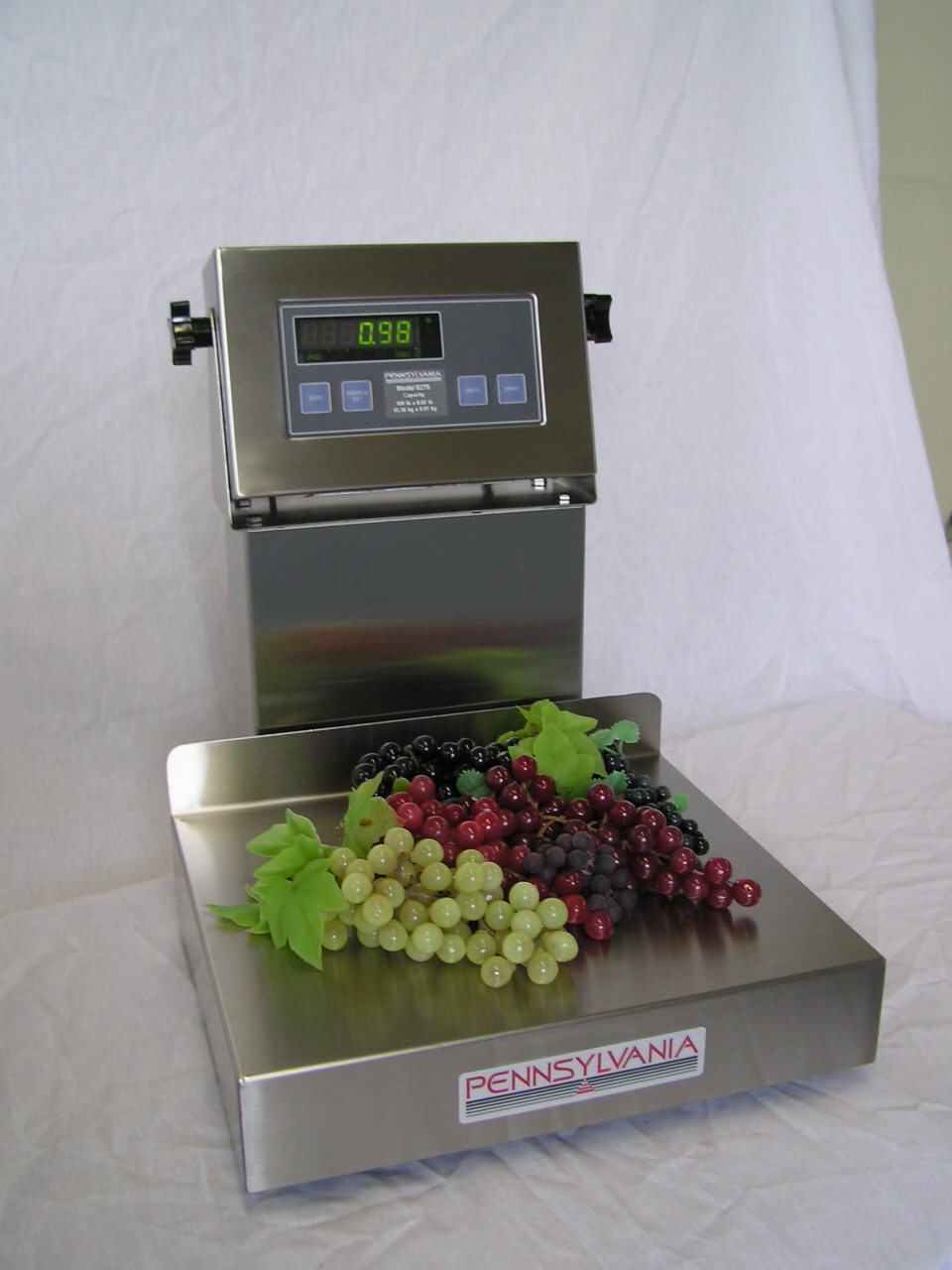

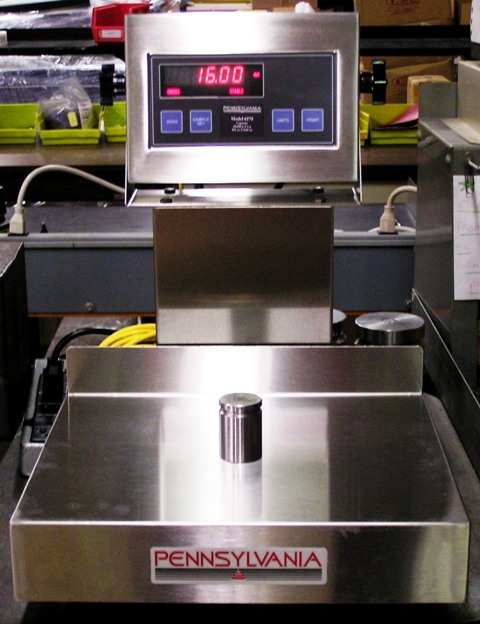

6200 Stainless Steel Bench Scales
Easy to set-up, easy to use, extra large sanitary platform, the SS6200 provides more utility and flexibility than any other bench scale on the market. With your choice of Digital Indicator—and the availability of a wide range of optional outputs from relays to Analog to 2nd Base inputs, wet or dry, large or small, whatever you weigh or count, the 6200 will exceed your weighing requirements.
- PRICE INCLUDES CHOICE OF DIGITAL INDICATOR IN PACKAGE
- OPTION Analog output, Ethernet, or Set points (7400+) Parts Counting (7500+, 7600+)
- Complete package INCLUDES Digital Indicator of choice
- SIMPLE TO USE and easy to service—uses proven universal PLUS+ Main Board
- LARGE 12 x 14” Platform/ 2” LIP and IP66 Environmentally Sealed Aluminum Load Cell or substitute Scaime AG for dry counting applications at n/c (specify with order)
- Adjustable display angle – ALL MODELS RS-232 data output standard
- Convenient for bench filling and weighing of large or bulky items PLUS superior resolution for parts counting BOTH sanitary and industrial applications
- 2 year warranty
- Made in Lancaster, Pennsylvania using USA made components
[title text=”Details” style=”Click to edit”]
PRICE INCLUDES CHOICE OF DIGITAL INDICATOR IN PACKAGE:
WEIGHING – CHECK WEIGHING – COUNTING – WEIGHT PROCESSING
SS Base Assembly, Column, Indicator – Complete Package – Specify Indicator when Ordering
Large 12 x 14” sanitary platform with 2” rear lip
*Other weight units & resolutions including Lb/Oz split display available as standard—specify Primary and Secondary units (2) w/order. See Indicator specifications for Options such as RELAY OUTPUT, Ethernet, Analog Output, etc.
Note: LOAD CELL: IP64 Environmentally Sealed, IP-66 rated—provides crisper response and better accuracy than stainless steel and similar environmental protection.
| Model # | Description | Capacity | Platter Size | Display | Unit of Measure | Battery | Dimensions | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| 6274-10 | 2 lb cap. w/7400 indicator | 10 x 0.002 lb - 4.536 x 0.001 kg | 12 x 14" SS w/2" Lip | 7400 Indicator | lb/kg | AC | 14” x 17” x 18.5” | 38 lbs |
| 6275-10 | 2 lb cap. w/7500 indicator | 10 x 0.002 lb – 4536 x 1 g | 12 x 14" SS w/2" Lip | 7500 Indicator | lb/g | AC | 14” x 17” x 18.5” | 38 lbs |
| 6276-10 | 2 lb cap. w/7600 indicator | 10 x 0.002 lb – 4536 x 1 g | 12 x 14" SS w/2" Lip | 7600 Indicator | lb/g | AC | 14” x 17” x 18.5” | 38 lbs |
| 6277-10 | 2 lb cap. w/ indicator | 10 x 0.002 lb - 4.536 x 0.001 kg | 12 x 14" SS w/2" Lip | Indicator | lb/kg | AC | 14” x 17” x 18.5” | 38 lbs |
| 6274-25 | 25 lb cap. w/7400 indicator | 25 x 0.005 lb – 9.072 x 0.002 kg | 12 x 14" SS w/2" Lip | 7400 Indicator | lb/kg | AC | 14” x 17” x 18.5” | 38 lbs |
| 6275-25 | 25 lb cap. w/7500 indicator | 25 x 0.005 lb – 9.072 x 0.002 kg | 12 x 14" SS w/2" Lip | 7500 Indicator | lb/kg | AC | 14” x 17” x 18.5” | 38 lbs |
| 6276-25 | 25 lb cap. w/7600 indicator | 25 x 0.005 lb – 9.072 x 0.002 kg | 12 x 14" SS w/2" Lip | 7600 Indicator | lb/kg | AC | 14” x 17” x 18.5” | 38 lbs |
| 6277-25 | 25 lb cap. w/ indicator | 25 x 0.005 lb – 9.072 x 0.002 kg | 12 x 14" SS w/2" Lip | Indicator | lb/kg | AC | 14” x 17” x 18.5” | 38 lbs |
| 6274-50 | 50 lb cap. w/7400 indicator | 50 x 0.01 lb – 22.68 x 0.005 kg | 12 x 14" SS w/2" Lip | 7400 Indicator | lb/kg | AC | 14” x 17” x 18.5” | 38 lbs |
| 6275-50 | 50 lb cap. w/7500 indicator | 50 x 0.01 lb – 22.68 x 0.005 kg | 12 x 14" SS w/2" Lip | 75400 Indicator | lb/kg | AC | 14” x 17” x 18.5” | 38 lbs |
| 6276-50 | 50 lb cap. w/7600 indicator | 50 x 0.01 lb – 22.68 x 0.005 kg | 12 x 14" SS w/2" Lip | 7600 Indicator | lb/kg | AC | 14” x 17” x 18.5” | 38 lbs |
| 6277-50 | 50 lb cap. w/ indicator | 50 x 0.01 lb – 22.68 x 0.005 kg | 12 x 14" SS w/2" Lip | Indicator | lb/kg | AC | 14” x 17” x 18.5” | 38 lbs |
| 6274-100 | 100 lb cap. w/7400 indicator | 100 x 0.02 lb – 45.36 x 0.01 kg | 12 x 14" SS w/2" Lip | 7400 Indicator | lb/kg | AC | 14” x 17” x 18.5” | 38 lbs |
| 6275-100 | 100 lb cap. w/7500 indicator | 100 x 0.02 lb – 45.36 x 0.01 kg | 12 x 14" SS w/2" Lip | 7400 Indicator | lb/kg | AC | 14” x 17” x 18.5” | 38 lbs |
| 6276-100 | 100 lb cap. w/7600 indicator | 100 x 100 x 0.02 lb – 45.36 x 0.01 kg | 12 x 14" SS w/2" Lip | 7400 Indicator | lb/kg | AC | 14” x 17” x 18.5” | 38 lbs |
| 6277-100 | 100 lb cap. w/indicator | 0.02 lb – 45.36 x 0.01 kg | 12 x 14" SS w/2" Lip | Indicator | lb/kg | AC | 14” x 17” x 18.5” | 38 lbs |
