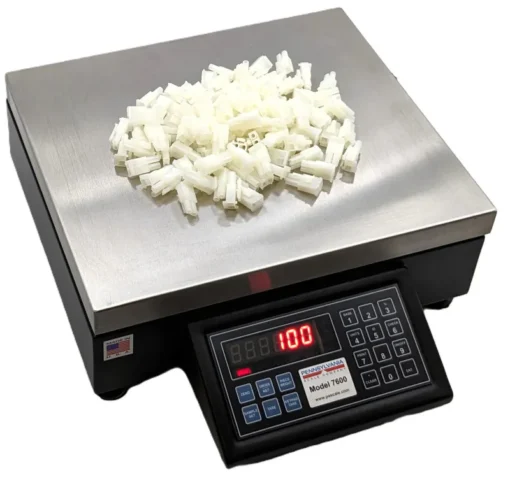

Pennsylvania Scale 7600-HR Counting/Bench Scale

Pennsylvania Scale 7600-HR Counting/Bench Scale

Get the features and performance you expect from the company that practically invented counting scales.

Elevate process accuracy and avoid costly waste with the 7600 series Count Weigh Scale.

It offers unparalleled counting and weighing precision, with a displayed graduations ratio of 1 part in 20,000 of capacity for exceptional resolution.

The 7600 scale provides multiple counting modes, piece weight entry, keypad tare, product ID accumulation, and powerful label printing capabilities, letting you tailor its advanced functionality to your counting or weighing applications.

An optional second scale base input and programmable data output further enhance operational flexibility and productivity.

Robust and resilient, the 7600 scale is designed and manufactured in the USA to withstand the most challenging real-world industrial environments and deliver years of uninterrupted service and trouble-free operation.

CALL FOR QUOTE

215.739.9644

Categories: , , ,

STANDARD FEATURES

  • Heavy-duty powder coated steel and SS construction
  • Clean, convenient design with bright, Red LED display
  • Full functions with Sample, Zero, Tare, Keypad Tare, Gross/Net, Piece Weight, Print, Base and Units
  • Two units of measurement, including lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. – oz
  • Single or optional dual base-counting and weighing
  • Scale and Remote Base counting and weighing
  • Multiple count modes and Auto Sample Update and percent-of error/accuracy display
  • Fast one-step or two-step counting
  • One powerful and flexible standard serial ports, optional wired ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth
  • Physical Dimensions: 16″ X 14″ X 5.5″
  • Warranty 4 Year Limited Warranty
  • Legal for trade NTWP COC 91-149A7
  • Measurement Canada COC AM-4869 Rev. 3
  • Shipping Information: 23” X 21” X 7” Carton 19 lbs
  • Four Year Limited Warranty
  • Made in the USA

Count Features

  • Auto Sample Update™ for accuracy enhancement
  • (4) Pre-set sample sizes plus keyboard entry
  • Display of Percent of Error or Accuracy when sampling
  • Display/Key entry of Piece Weight (or Piece Weight per thousand)
  • Sample and Sample-to-bulk counting with 2nd optional platform

Weighing Functions

  • Pushbutton or keyboard Tare entry
  • Display of Gross/Net /Tare weights
  • (2) standard metrological weight units
Model 7600-HR

Specifications
Power AC line voltages 115/230 VAC, 50/60 Hz (Specify when ordering)
Power Consumption 0.25A at 115 VAC, 0.13A at 230 VAC
Circuit Protection RFI, EMI, ESD Protection ADC shielded
Display: .56 LED Red, bright, stable and easy to read
Indications for Gross, Net, Tare, Count, Piece Weight, % Accuracy, and Base 2
Operating Temperature 14℉ to 104℉, -10℃ to 40℃
Internal Resolution 1/8,000,000
Displayed Resolution. Standard 1/20,000. Up to 1/50,000
5 VDC excitation to power up to 12, 350-ohm load cells
Physical Dimensions: 16″ X 14″ X 5.5″
Battery Option 23 lbs.

Data Communications
Bidirectional RS-232 standard. Communication options include: USB Virtual Comport, USB HID Keyboard Emulation, Wired Ethernet, WiFi, Analog Output, selectable 0-10VDC or 4-20m
Custom label printing
Interface to third party software systems including data collection, manifesting, quality control, ERP and MRP
Model # Description Capacity Platter Size Display Unit of Measure Battery Dimensions Shipping Weight
7600-2HR 2 lb Capacity-Aluminum Platform-NOT LEGAL FOR TRADE 2 x 0.0001 lb -- 907.2 x 0.05 g* 8" X 8" Aluminum Remote lb/kg - oz/g AC/DC 12" x 14" 19 lbs
7600-5HR 5 lb Capacity-Aluminum Platform-NOT LEGAL FOR TRADE 5 x 0.0002 lb -- 2268 x 0.2 g* 8" X 8" Aluminum Remote lb/kg - oz/g AC/DC 12" x 14" 19 lbs
7600-10HR 10 lb Capacity-SS Platform-NTEP 10 x 0.0005 lb -- 4536 x 0.5 g* 12" X 14" SS Remote lb/kg - oz/g AC/DC 12" x 14" 19 lbs
7600-20HR 20 lb Capacity-SS Platform-NTEP 20 x 0.001 lb -- 9.072 x 0.005 kg* 12" X 14" SS Remote lb/kg - oz/g AC/DC 12" x 14" 19 lbs
7600-50HR 50 lb Capacity-SS Platform-NTEP 50 x 0.002 lb -- 22.68 x 0.005 kg* 12" X 14" SS Remote lb/kg - oz/g AC/DC 12" x 14" 19 lbs
7600-100HR 100 lb Capacity-SS Platform-NTEP 100 x 0.005 lb -- 45.36 x 0.005 kg* 12" X 14" SS Remote lb/kg - oz/g AC/DC 12" x 14" 19 lbs
7600-150HR 150 lb Capacity-SS Platform-NTEP 150 x 0.01 lb -- 68.04 x 0.005 kg* 12" X 14" SS Remote lb/kg - oz/g AC/DC 12" x 14" 19 lbs
7600-200HR 200 lb Capacity-SS Platform-NTEP 200 x 0.01 lb -- 90.72 x 0.005 kg* 12" X 14" SS Remote lb/kg - oz/g AC/DC 12" x 14" 19 lbs

Options

  • Second base input
  • Battery AC operation, built-in re-chargeable system, 30+ hours of operation
  • Printers for label, barcode label or receipt printing
  • External power input 12 or 24 VDC.
  • 220/230 VAC operation
  • 1 alarm buzzer mounted inside scale or indicator.
  • Ball-top transfer plate and roller conveyor
  • DIO Setpoint/relays DC or AC
  • Alarm stack lights and buzzer.
  • Communications Wired Ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth®
  • Analog output, 4-20ma or 0-10vdc
  • Custom engineering for unique applications
