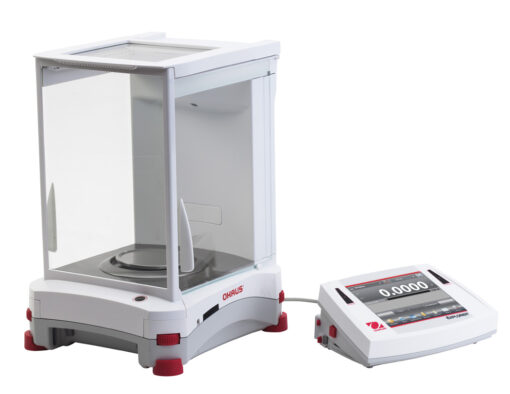

Penn Scale Explorer Analytical Separated

Penn Scale Explorer Analytical Straight on

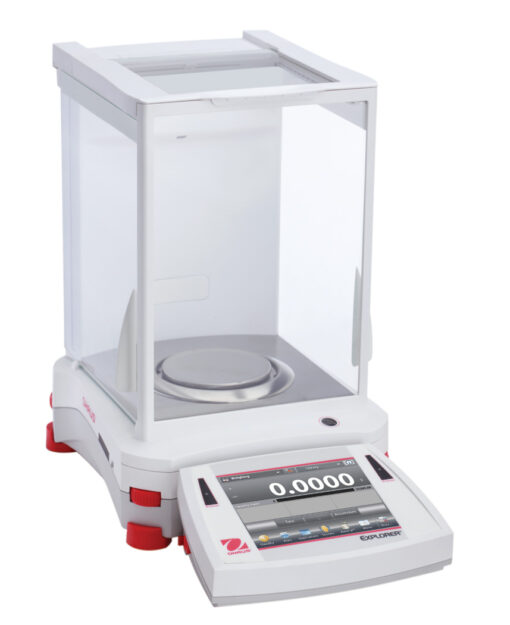

Explorer Analytical Balance (Automatic Motorized Doors)

The OHAUS Explorer® Series has risen to the next level of ingenuity—expanding on its modern features and design to offer unmatched functionality in a line of high-performance balances unlike any other on the market. This NEW model has Automatic Motorized Doors to Boost Efficiency.

Modular Design

Color touch display that can be separated from the weighing base as well as a motorized draftshield that can be operated with the use of touchless sensors.
Large color touch-screen display, icon-driven application software that features 14 unique application modes
Adjustable Angle Display make the Explorer the most advanced balance in its class!
Optimized Linearity and Repeatability specifications
Enhanced Vibration Filtering for better balance stability
AutoCal Automatic Internal Calibration to improve accuracy

Explorer’s draftshield provides ample access and visibility to the weighing chamber through the versatile top door and side sliding doors. Select models feature motorized side doors that open and close automatically with use of the touchless sensors on the base and display.

The OHAUS Explorer’s advanced applications simplify even the most complex laboratory measurements. Whether it’s determining the difference between initial and residual weights or calculating the density of solids and liquids.

Explorer eliminates the need for time consuming manual calculations and data logging. The high resolution display and innovative user interface make balance setup and application use effortless.

CALL NOW: 215-739-9644

Intelligent PERFORMANCE—All Explorers have newly optimized linearity and repeatability specifications and enhanced vibration filtering for better balance stability.
Intuitive OPERATION—A large color touch-screen display, icon-driven application software with 14 unique application modes.
Ingenious DESIGN—The base and display separate for maximum flexibility in any work area.
Draftshield models isolate the weighing chamber to enhance stability and speed results while offering maximum accessibility to the weighing chamber through top-mounted side doors or through the versatile top door that flips or slides open.
Intuitive USER SETUP – Explorer is the industry’s most easy-to-use balance, featuring leveling assistance and instructional messaging for quick out-of-the-box setup and use.
Practical Features—Explorer has up to four user-programmable touchless sensors to minimize cross contamination and wear and tear normally associated with repeated touching of the balance.
Intuitive Software -14 built-in applications with customization capabilities to meet the varying needs in laboratory and industrial settings.
Ingenious DRAFTSHIELD – Explorer’s draftshield provides ample access and visibility to the weighing chamber through the versatile top door and side sliding doors.
Practical TOUCHLESS SENSORS – Explorer features up to four touchless sensors for hands-free operation of zero, print, calibration, tare, automated draftshield doors and other selectable functions.
Intelligent CALIBRATION – AutoCal™ ensures performance and assists with routine maintenance by automatically calibrating the balance daily.
Intuitive USER SETUP Explorer is the industry’s most easy-to-use balance, featuring leveling assistance and instructional messaging for quick out-of-the-box setup and use.
NTEP Certified Models
Measurement Canada Models
1 year warranty

Model #	Description	Capacity	Platter Size	Display	Unit of Measure	Battery	Dimensions	Shipping Weight
EX124	Internal Calibration	120 x 0.0001 g	3.54 in / 90 mm	VGA	mg; g; oz; lb; ct; ozt; grain; dwt	AC; Rechargeable Battery	Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47"	21 Lbs
EX124/AD	Internal Calibration; Certified; Automatic Door	120 x 0.0001 g	3.54 in / 90 mm	VGA	mg; g; oz; lb; ct; ozt; grain; dwt	AC; Rechargeable Battery	Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47"	21 Lbs
EX124N	Internal Calibration; Certified	120 x 0.0001 g	3.54 in / 90 mm	VGA	mg; g; oz; lb; ct; ozt; grain; dwt	AC; Rechargeable Battery	Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47"	21 Lbs
EX224	Internal Calibration	220 x 0.0001 g	3.54 in / 90 mm	VGA	mg; g; oz; lb; ct; ozt; grain; dwt	AC; Rechargeable Battery	Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47"	21 Lbs
EX224/AD	Certified; Automatic Door	220 x 0.0001 g	3.54 in / 90 mm	VGA	mg; g; oz; lb; ct; ozt; grain; dwt	AC; Rechargeable Battery	Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47"	21 Lbs
EX224N	Internal Calibration; Certified	220 x 0.0001 g	3.54 in / 90 mm	VGA	mg; g; oz; lb; ct; ozt; grain; dwt	AC; Rechargeable Battery	Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47"	21 Lbs
EX324	Internal Calibration	320 x 0.0001 g	3.54 in / 90 mm	VGA	mg; g; oz; lb; ct; ozt; grain; dwt	AC; Rechargeable Battery	Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47"	21 Lbs
EX324/AD	Certified; Automatic Door	320 x 0.0001 g	3.54 in / 90 mm	VGA	mg; g; oz; lb; ct; ozt; grain; dwt	AC; Rechargeable Battery	Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47"	21 Lbs
EX324N	Internal Calibration; Certified	320 x 0.0001 g	3.54 in / 90 mm	VGA	mg; g; oz; lb; ct; ozt; grain; dwt	AC; Rechargeable Battery	Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47"	21 Lbs
