- Rugged, heavy duty design for rough industrial use
- Designed for permanent or portable installations
- Premium load cells are NTEP approved
- Available in Mild Steel & Stainless Steel
- USDA approved Load Cell Specifications: Output: 2
- Many standard and custom sizes and capacities
- Special requirements for unique loading
- Structural performance assured with Computer Aided Design
- Premium Sensortronics 65023 load cells standard – others on request
- NTEP COC 90-097A3; Canada AM-4941/S.WA-4456 Rev. 3 @ 5000 Div.

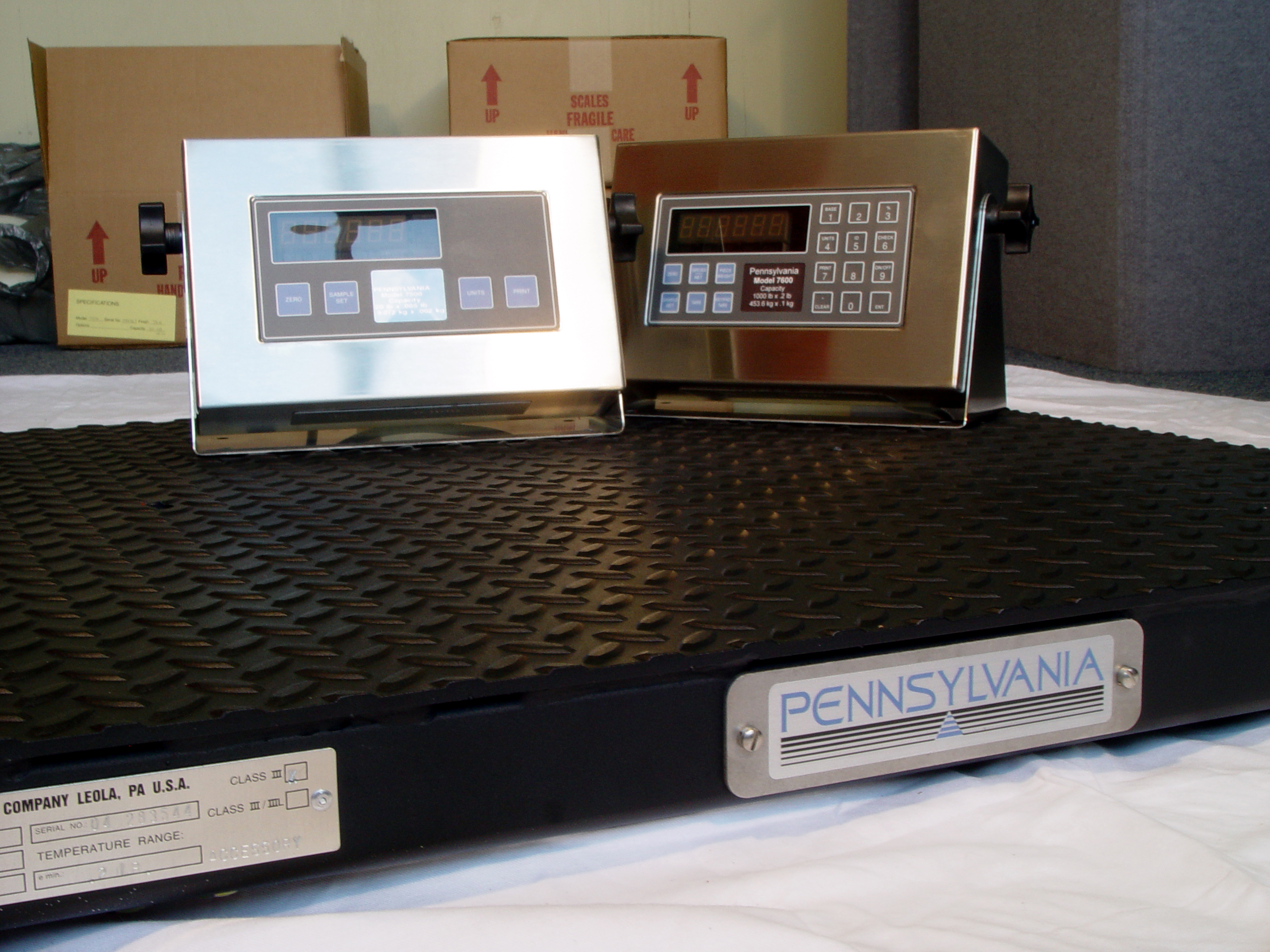

- FREE Factory matching when ordered with any PA counting scale or digital indicator
- Additional Features for Stainless Steel Models:
- 302/304 Stainless steel construction, Smooth plate deck (provides more surface contact than optional diamond plate in wet areas), All stainless steel load cells, hardware, and construction,
- Remote stainless steel summing box, NEMA 4 rated & USDA approved
- Exclusive 5 year Warranty
- Made in Lancaster, Pennsylvania

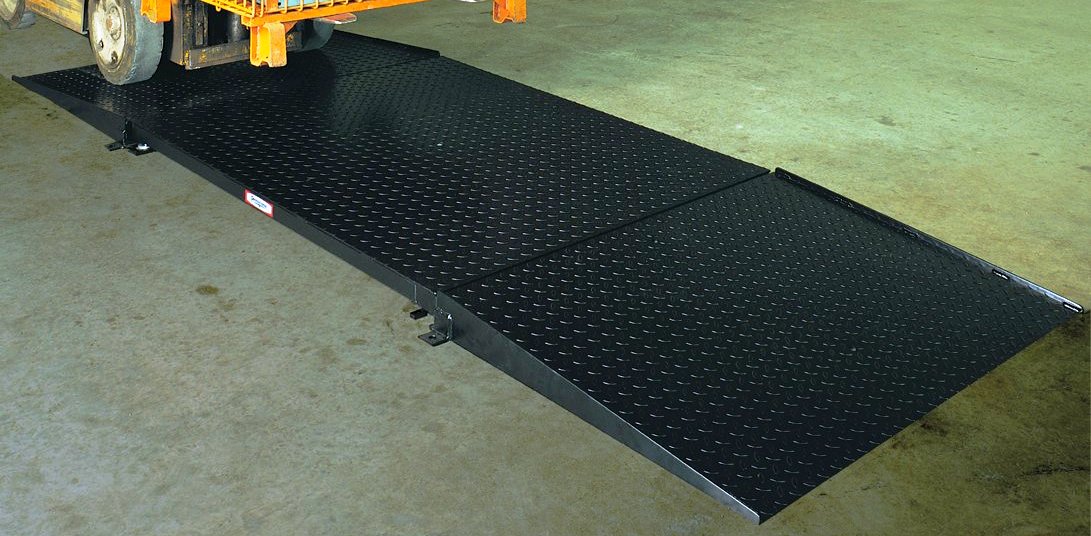

[title text=”Optional Ramps for 6600 – Please specify MS or SS” style=”Click to edit”]
24″ x 36″ x 3′, up to 5K Lb Capacity
30″ x 36″ x 3′, up to 5K Lb Capacity
36″ x 36″ x 3′, up to 10K Lb Capacity
48″ x 36″ x 3′, up to 10K Lb Capacity
48″ x 48″ x 3′, up to 10K Lb Capacity
60″ x 36″ x 3′, up to 10K Lb Capacity
60″ x 48″ x 3′, up to 10K Lb Capacity
72″ x 36″ x 3′, up to 10K Lb Capacity
48″ x 48″ x 4′, up to 20K Lb Capacity
60″ x 48″ x 4′, up to 20K Lb Capacity
72″ x 48″ x 4′, up to 20K Lb Capacity
84″ x 48″ x 4′, up to 20K Lb Capacity
[title text=”Options for 6600 Mild Steel Floor Scales” style=”Click to edit”]
57670
Upgrade Load Cells and Leveling Feet to SS (in place of standard
plated) 1K, 2K, 5K, + 10K Capacities – Includes Stainless Steel Leveling
Feet & Hardware
NOTE: Powder Coat finish is impervious to many corrosive materials
SS LEVELING
FEET ½-20
Upgrade to SS Leveling Feet (in place of standard plated) on MS
Bases 1K, 2K, 5K 10K Capacities – ½-20 threads, 2” Diameter
SS LEVELING
FEET ¾-16
Upgrade to SS Leveling Feet (in place of standard plated) on MS
Bases 10K or 20K Capacities – ¾-16 threads, 3” Diameter
SS LEVELING
FEET 1”-20
Upgrade to SS Leveling Feet (in place of standard plated) on MS
Bases 30K or 40K Capacities with 1”-8 threads, 3” Diameter
56690
Top access junction box, Accessible through top plate.
NOTE: 56699-2 plastic, molded NEMA 4X summing box w/57115
56699-1
SS NEMA 4X summing box, used for Remote Summing applications—
order as a part or up charge for remote summing on standard scales.
Includes standard 57115 universal summing card, PA-design
56699-2
Plastic, molded NEMA 4X summing box – ordered as a part.
Includes standard 57115 universal summing card, PA-design
HERMETICALLY
SEALED
Hermetically Sealed load cells in place of standard plated; includes
SS leveling feet and all SS hardware.
NOTE: Priced for upgrade from Nickel Plated standard cells. Does not include
SS remote summing box on mild steel units.
(For upgrade to hermetic from SS models, see below.)
56728-3
BASE-MOUNTED Indicator column, flange mates w/all PA Indicators,
38” nominal height. Note: Column/indicator will be ‘live’
[title text=”Options for 6600 Mild Steel Floor Scales” style=”Click to edit”]
59241-3 Forklift skids for 36″ wide bases – adds 3″ to height – set of (2)
59241-4 Forklift skids for 48″ wide bases – adds 3″ to height – set of (2)
59241-5 Forklift skids for 60″ wide bases – adds 3″ to height – set of (2)
59241-6 Forklift skids for 72″ wide bases – adds 3″ to height – set of (2)
59241-7 Forklift skids for 84″ wide bases – adds 3″ to height – set of (2)
[title text=”M6600 Bumper Guards for MS bases, order by the piece:” style=”Click to edit”]
56260-2 Bumper Guard, 36” x 3” – safety yellow finish
56260-3 Bumper Guard, 48” x 3” – safety yellow finish
59351-3 Bumper Guard,48” x 4” (fits 20K) – safety yellow finish
56260-4 Bumper Guard, 60” x 3” – safety yellow finish
[title text=”M6600 MOUNTING OPTIONS for MS floor scales:” style=”Click to edit”]
56764-3 Pit Spacers for 1K, 2K, 5K, 10K capacity bases, Set of (4) pieces
56764-2 Pit Spacers for 20K capacity bases, Set of (4) pieces
56764-4 Pit Spacers for 30K & 40K capacity bases, Set of (4) pieces
59352-1
(4) Plated Steel BASE ANCHORS, for up to 10K cap. Bases (2-1/8”
opening fits 2” diameter foot). Set of (4)
59352-2
(4) Plated Steel Base Anchors, for 20K cap. Bases (3-1/8” opening
fits 3” diameter foot). Set of (4)
[title text=”M6600 Pit Frames – for in-floor mounting completely welded including corner plates, concrete anchors, and spacers: Note: Drawings are available on request for formed on site pits no charge – finish: spray black” style=”Click to edit”]
57599-1 Fits 48″ x 48″ 1K, 2K, 5K or 10K capacity bases – 3” nominal depth
57599-2 Fits 48″ x 60″ 1K, 2K, 5K or 10K capacity bases – 3” nominal depth
57599-3 Fits 60″ x 60″ 1K, 2K, 5K or 10K capacity bases – 3” nominal depth
57599-4 Fits 36″ x 36″ 1K, 2K, 5K or 10K capacity bases – 3” nominal depth
57603-1 Fits 48″ x 48″ 20K capacity bases – 4” nominal depth
57603-2 Fits 48″ x 60″ 20K capacity bases – 4” nominal depth
57603-3 Fits 60″ x 60″ 20K capacity bases – 4” nominal depth
57603-4 Fits 60″ x 72″ 20K capacity bases – 4” nominal depth
Special Order Other sizes as per requirement to fit PA platforms
[title text=”M6600 Pit Frames – for in-floor mounting completely welded including corner plates, concrete anchors, and spacers: Note: Drawings are available on request for formed on site pits no charge – finish: spray black” style=”Click to edit”]
49737-6 MS Foot, standard MS models to 10K capacity, 1/20 UNF, 2-5/8” H, 2” Base
49737-7 SS Leveling Foot, standard SS models to 10K, 1/20 UNF, 2-5/8” H, 2” Base
4973718 MS Foot, ‘OLD STYLE’ MS models to 10K cap; ½-20 UNF, 3” H, 3” Base
49737-8 MS Foot, MS models with FORKLIFT SKID OPTION, ½-20 UNF, 4” H, 2” Base
49737-2 MS Foot, MS models 20K Capacity, ¾-16 UNC, 3-1/2” H, 3” Base diameter
49737-19 MS Foot, MS models 30/40K, 1-14 UNC, 3-1/2” H, 3” Base diameter
57115 SUMMING CARD, 1 x 5” 4-cell w/Excitation Trim. Many universal replacement applications, screw terminals
48817-5 HOME RUN CABLE, 20’ length, with PA style Connector, tinned leads
Load Cells – Fast Shipment
