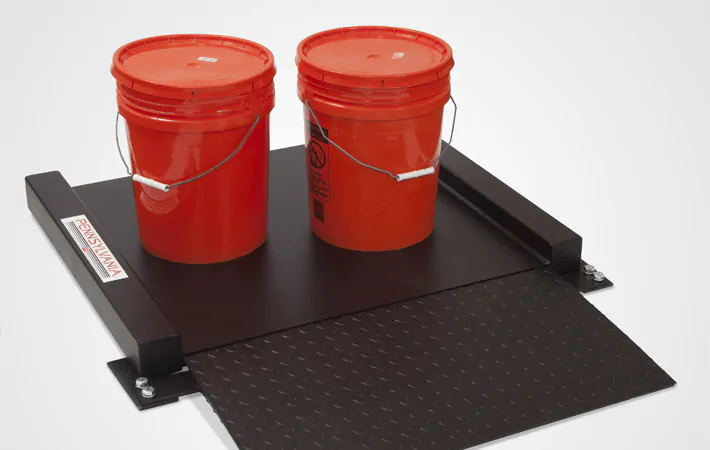

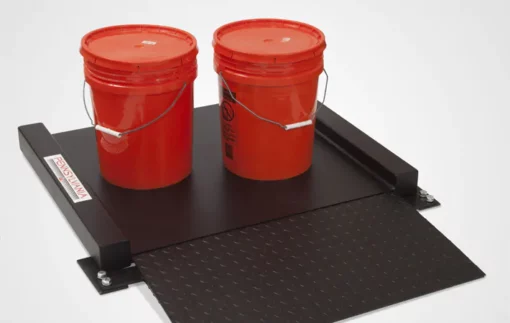

6900 and 6950 Barrel Scales

Compact, Versatile, Dependable

Clean heavy duty designs and premium components and a 1-1/2″ super low profile make these compact barrel floor scales ideal for many years of Sustained Accuracy™ and dependable weighing or counting. Live side rails for oversize cargo. Wet or dry, permanent or portable, heavy materials or light – no matter what you weigh, the 6900 series industrial platform scales will outperform the competition in a wide range of applications.

  • 6900 Series barrel scales with detachable ramp in (2) sizes
  • 6950 Series barrel scales with ‘live’ integral ramps or backstop and one ramp
Category:

Applications

  • Drums, kegs, or barrels – loaded with wheeled cart or bin
  • Commercial industrial LAUNDRIES
  • Shipping or receiving including weight or count
  • Food or chemical processing
  • General utility in a wide range of applications

Physical Dimensions

M6900 and SS6900 in standard sizes: Flat weighing surface 30″ x 30″ or 36″ x 36″; 1-1/2″ high platform. Package includes (1) ramp with attachment brackets 30″ or 36″ w x 18″ l. 2nd ramp can be added at any time. Contact factory for custom sizes.

M6950 with live ramps: Flat surface 30″ x 30″ with (2) 9″ live ramps for total length of 48″. Optional configuration: 30″ x 42″ flat surface with backstop and (1) 9″ live ramp for a total length of 51″. Contact factory for custom sizes or design.

Load Cell Specifications

  • (4) Single end shear beam load cells, SS for SS models, with adjustable leveling feet
  • 100% end loading
  • Adjustable corner trim
  • Free matching and drop shipping when purchased with any Pennsylvania brand indicator or parts counting console.

Warranty

The parts and components of these Pennsylvania Scale Company products have a Limited Warranty for two years from date of retail delivery or shipment against defects in materials or workmanship, subject to the terms and conditions of our standard warranty.

Download Spec Sheet

  • 1-1/2″ platform height allows for compact ramp(s)
  • Capacity 1000 lbs /500 kgs (optional capacities – contact factory)
  • Rugged heavy duty design
  • (4) Single end shear beam load cells with 100% end loading and adjustable leveling feet
  • Black powder-coated finish (or sand blast SS as specified)
  • 20′ cable to digital indicator includes factory matching at no cost
  • Live side rails for bulky or oversized cargo add 4-1/2″ to width specification
  • Ideal for portable or permanent installations and where space is tight
  • (1) Ramp included; 2nd ramp is optional
  • Smooth plate surface is standard with safety plate ramp surfaces
  • Custom sizes up to 48″ wide x 60″ long – contact factory
  • 6950 MODELS include either (2) live ramps or (1) ramp with backstop

Download Spec Sheet
